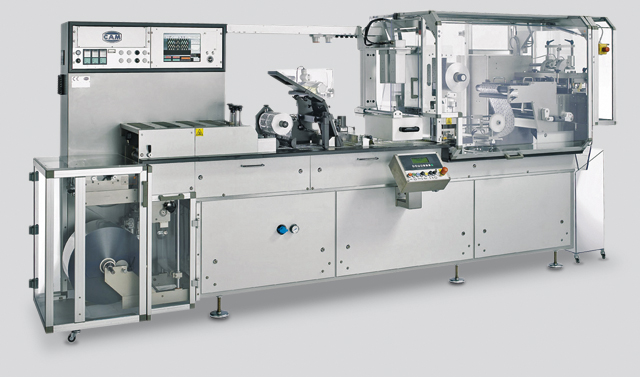

The CAM MC is an automatic, intermittent-motion blister packaging machine engineered specifically to deliver precision primary packaging for medium-volume pharmaceutical and nutraceutical manufacturing batches. Utilizing a fully mechanical drive train synchronized with intermittent plate-forming and plate-sealing technologies, the MC series handles a vast array of oral solid dose products with remarkable process repeatability. This robust system delivers a perfect balance between a highly restricted cleanroom footprint and high hermetic sealing integrity for capsules, tablets, and caplets.
Engineering & Design Advantages
- Strict GMP Balcony Framework: Built with an open-architecture cantilever frame that completely segregates the structural mechanical drive components from the active material transit paths. This design maximizes operator visibility, prevents product cross-contamination hazards, and allows rapid line clearances between batches.
- Uniform Mechanical Plate Sealing: Features a flat-bed intermittent plate sealing station that applies completely uniform pressure and constant heat across the entire surface of the blister sheet. This mechanical configuration ensures hermetic sealing integrity even when processing rigid, high-density push-through lidding materials or heavy child-resistant foils.
- Optimized Compact Footprint: Engineered with a simplified, linear layout that drastically minimizes floor space requirements. The compact chassis enables seamless retrofitting and drop-in integration into pre-existing cleanrooms or production corridors where larger blister packers cannot pass spatial limits.
- Intuitive Tool-Less Changeover Logic: To compress scheduled production downtime, all specialized size-format components—including forming molds, sealing blocks, and guide tracks—are engineered for quick-release, tool-less swap-outs that can be handled easily by standard line operators.
Thermoforming Versatility & Synchronized Product Infeed
Managing ambient humidity variance and different forming film characteristics are constant challenges in primary oral solid packaging. The CAM MC platform utilizes precise mechanical web index tracking paired with stable heating parameters to eliminate pocket deformation and cavity collapse.
Universal Base Web Compatibility
The pre-heating and plate-forming stations are specifically calibrated to run a wide range of conventional, eco-friendly, or high-moisture-barrier packaging laminates:
- Standard Thermoformed Polymers: Formulated for optimal softening and deep-drawn accuracy when processing standard PVC, PVDC, PP, Triplex, and PETG matrices.
- Cold-Form High-Barrier Composites: Pre-arranged to effortlessly manipulate heavy-gauge ALU-PE or ALU-PP laminates for aluminum-aluminum (Alu-Alu) clinical applications without tearing the backing layer.
Automated Feed System Synchronization
To enforce absolute placement and zero empty cavities at consistent mechanical stroke rates, the MC series supports multiple specialized feeding modules:
- Universal Vibratory Infeeds: Employs custom planetary sorting tracks and soft-brush configurations to deliver continuous, jam-free loading of coated tablets or hard gel capsules directly into the moving cavities.
- Dedicated Mechanical Chutes: Can be customized with precise mechanical sliders or synchronized pick-and-place grippers to feed unstable shapes or multi-component tablet combinations without line jams.
In-Line Process Control & Turnkey Line Pacing
The CAM MC automatic blister packaging machine functions effectively as an interconnected primary node, supporting robust physical matching with automated secondary setups:
- Vision Quality Inspections: Pre-arranged housing allocations readily accept high-resolution color camera monitoring networks to automatically inspect for chipped tablets, product discrepancies, or empty cavities, triggering precise downstream pneumatic reject gates.
- Lidding Foil Batch Printing: Easily integrates with thermal inkjet (TIJ), hot-foil, or laser marking devices to execute real-time expiration dates, batch tracking data, and regulatory 2D DataMatrix codes directly onto lidding film surfaces.
- Downstream Cartoner Synchronization: Conveyor exit profiles perfectly match the line heights and pacing parameters required to feed compliant blister batches directly into intermediate horizontal cartoners (such as the CAM PMM or PMX models).
Technical Data & Application Parameters
| Technical Specification Parameter | Operational Performance Limits (MC Series) |
|---|---|
| Sealing and Forming Methodology | Intermittent flat plate forming / Intermittent flat plate sealing |
| Primary Material Compatibility | PVC, PVC-PVDC, Triplex, Aclar, ALU-ALU laminates, and aluminum lidding foils |
| Mechanical Stroke Pacing | Up to 50 strokes per minute (configuration and material dependent) |
| Maximum Web Width (L) | Up to 150 mm |
| Maximum Base Web Forming Pitch | Up to 110 mm |
| Maximum Forming Depth Capacity | Up to 12 mm standard |
| Chassis Frame Layout Philosophy | Full GMP-compliant balcony cantilever framework with interlocked safety guards |
