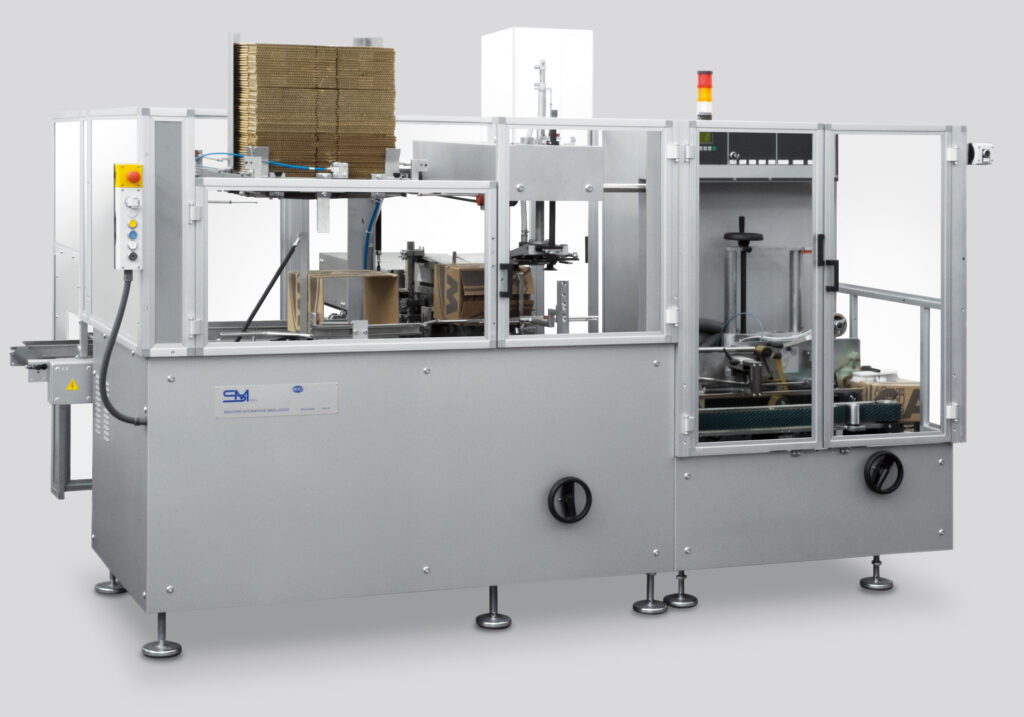

The CAM SM80 is an automatic, intermittent-motion horizontal case packer engineered to serve as a reliable, high-efficiency medium-to-high capacity solution for end-of-line secondary and tertiary packaging. Built explicitly to manipulate pre-glued corrugated shipping blanks, the SM80 automates the entire sequence of carton collation, positive case erection, horizontal payload side-loading, and secure container closure. This heavy-duty system integrates seamlessly as an end-of-line anchor for pharmaceutical, cosmetic, nutraceutical, and chemical production environments.
Engineering & Design Advantages
- Full GMP Balcony Construction: Built to satisfy the most demanding global manufacturing regulations. The structural cantilever framework cleanly segregates the underlying mechanical transmission compartment from the active carton transport lanes, offering total structural visibility, zero residue accumulation zones, and rapid line clearances.
- Simultaneous Two-Sided Case Extraction: Employs a positive vacuum pick-and-place mechanism that locks onto and pulls the corrugated shipping blank from adjacent opposing faces simultaneously. This active pre-breaking technique completely relaxes the cardboard score lines, guaranteeing square case erection and preventing feeding jams.
- Programmable Carton Aggregation Matrix: Equipped with an integrated conditioning station that receives, tracks, and stacks individual incoming cartons arriving from upstream bundlers or overwrappers. The automated system structures the items into tight multi-row and multi-tier matrices before executing side-loading.
- Flexible Sealing Closures: The case output and discharge lanes are modularly pre-arranged to support rapid field configurations, allowing production managers to seamlessly implement self-adhesive tape applicators, Kraft paper tape, or fully automated hot-melt glue spray units.
Frictionless Loading Kinematics & Secondary Pack Protection
Preventing cosmetic scuffing, edge crushing, or accidental damage to secondary packaging material flaps is vital during high-volume end-of-line transfers. The CAM SM80 integrates specialized mechanical expansion tooling paired with heavy-duty electronic sensor monitoring to maintain a flawless loading sequence.
Active Expansion Loading Funnel
To establish a smooth, unblocked pathway for the grouped product payload, the horizontal transfer station manages side-loading through a protective mechanical movement:
- Forced Flap Separation: A heavy-duty mechanical expansion funnel steps forward, entering directly into the mouth of the pre-squared corrugated case before product introduction begins. This action completely expands the outer box flaps outward, preventing collision blocks.
- Torque-Limited Cam Pusher: The horizontal side-loading pusher advances smoothly along a rigid mechanical cam profile. The driving linkage is equipped with sensitive torque limiters to immediately halt operations if an accidental misaligned pack block occurs.
Calibrated Format Switching Tools
Supporting flexible line schedules with diverse case specifications requires fast, human-centric adjustments:
- Digital Position Counters: Format adjustments are performed tool-lessly via calibrated mechanical handwheels linked to digital position counters, removing the need for operational guesswork.
- Quick-Release Tooling Architecture: All primary sorting guides and format-specific collation layers use quick-disconnect levers, keeping maintenance windows highly compressed.
Upstream Line Synchronization & Quality Control Systems
The CAM SM80 horizontal case packer functions smoothly as an interconnected end-of-line node, supporting full hardware data handshakes with automated packaging lines:
- Turnkey Downstream Linking: Designed to directly accept line outputs from CAM continuous horizontal cartoners (such as the HV series), intermediate stretch wrapping machines (such as the ASB38), or high-speed blistering nodes (such as the nMX series).
- Serialization & Track-and-Trace Integration: The exposed cantilever layout offers clean access to mount external track-and-trace camera networks, barcode validation readers, and high-resolution print-and-apply labelers.
- Integrated Fail-Safe Logic: Features built-in sensor arrays enforcing “No Case / No Load” and downstream backup safety loops, automatically pausing feeding lines safely if a down-line palletizing blockade occurs.
Technical Data & Geometric Case Bounds
| Technical Specification Parameter | Operational Performance Limits (SM80 Series) |
|---|---|
| Case Loading Geometry | Horizontal side-loading (intermittent mechanical cycle) |
| Shipping Case Compatibility | Pre-glued corrugated cardboard cases (standard RSC formats) |
| Available Case Closure Configurations | Self-adhesive plastic tape, Kraft paper tape, or integrated Hot-Melt glue units |
| Case Length Range Bounds (A) | Min: 150 mm – Max: 500 mm |
| Case Length Range Bounds (A) | Min: 150 mm – Max: 500 mm |
| Case Width Range Bounds (B) | Min: 120 mm – Max: 350 mm |
| Case Height Range Bounds (H) | Min: 120 mm – Max: 350 mm |
| Frame Configuration standard | GMP Compliant Open-Style Balcony Cantilever Bedplate Frame |
