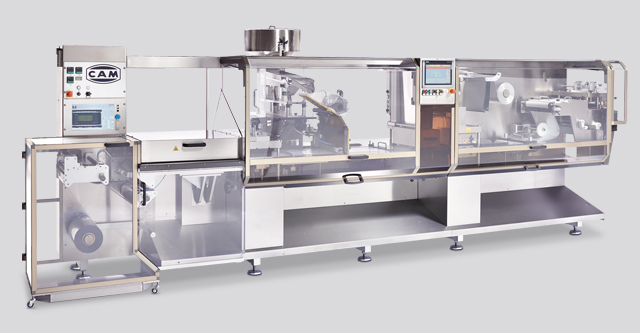

The CAM MK is an automatic, intermittent-motion blister packaging machine engineered specifically to deliver highly flexible, precision primary packaging for medium-to-large production batches in the pharmaceutical and nutraceutical industries. Combining reliable mechanical plate-forming with highly customizable sealing station architectures, the MK series ensures exceptional cavity formation and long-term process repeatability. This robust packaging node represents a benchmark solution for handling demanding multi-shift mass production requirements for capsules, tablets, caplets, and soft gels.
Engineering & Design Advantages
- Full GMP Balcony Framework: Engineered with a complete cantilever frame layout that guarantees an absolute structural separation between the rear mechanical drive transmission and the active material handling pathways. This architecture ensures immediate operator visibility, minimizes cross-contamination hazards, and allows for rapid, verifiable line clearances.
- Configurable Hybrid Sealing Architecture: The sealing section is modularly pre-arranged to support specific product needs, allowing manufacturing plants to implement flat plate sealing for completely uniform pressure distribution, or continuous rotary roller sealing for high-velocity film transits.
- Rugged Heavy-Duty Mechanical Cam Drives: Main indexing and tool movements are driven by ground, closed-profile mechanical cams. This rugged design eliminates structural vibrations, maintains extreme position accuracy over years of operation, and drastically lowers routine maintenance overhead.
- Tool-Less Rapid Changeover Logic: All size-format parts—including forming molds, sealing grids, guide tracks, and die-cutters—are engineered for rapid, quick-release swap-outs without specialized technical tools, boosting Overall Equipment Effectiveness (OEE).
Multi-Material Thermoforming & Cold-Forming Flexibility
Cardboard grain variances and high cleanroom relative humidity present constant challenges during primary packaging cycles. The CAM MK platform utilizes precise mechanical web index tracking paired with multi-zone temperature regulations to guarantee flawless, deep-drawn pocket integrity.
Universal Base Material Processing
The standard pre-heating plates and forming station layout effortlessly manipulate multiple high-barrier web formulations:
- Conventional Polymers: Optimized for standard thermoplastic matrices such as PVC, PVC-PVDC, Triplex, PP, and PETG, delivering perfectly defined cavities with zero structural thinning.
- High-Barrier Laminates: Effortlessly cold-forms stiff moisture-barrier structures like Aclar, COC, and heavy-gauge ALU-PE or ALU-PP foils for robust aluminum-aluminum (Alu-Alu) clinical configurations.
Advanced Infeed System Synchronization
To enforce absolute component placement at continuous maximum stroke rates, the MK series supports multiple synchronized feeding peripherals:
- Universal Omnia Feeders: Utilizes vibratory sorting tracks and active mechanical brush configurations to distribute sorted tablets, caplets, or hard gel capsules smoothly into moving cavities.
- Robotic Pick-and-Place Infeeds: Can be customized with synchronized vacuum gantry robotics to execute positive, scuff-free product insertion for fragile syringes, ampoules, or medical devices into deep-drawn plastic trays.
In-Line Process Control & Turnkey Downstream Matching
The CAM MK automatic blister packaging machine operates seamlessly as the primary node of high-capacity pharmaceutical setups, providing comprehensive tracking integration:
- Vision Inspection Readiness: Pre-arranged housing allotments readily accept high-resolution color camera monitoring networks to automatically check for empty pockets or product defects, triggering precise pneumatic reject gates.
- Online Printing & Serialization: Easily integrates with thermal inkjet (TIJ) or laser markers to execute real-time batch numbers, expiration data, and regulatory 2D DataMatrix codes directly onto lidding foils.
- Turnkey Downstream Linking: Exit tracking is aligned at standard line heights to feed compliant blister batches smoothly into intermediate horizontal cartoners (such as the CAM PMX or PMM models) and downstream bundlers.
Technical Data & Application Parameters
### 3. Righe della Tabella da Copiare Separatamente (In caso di interruzioni o filtri rigidi)*Se l’editor di Elementor dovesse riscontrare anomalie o tagliare l’ultima parte della tabella, usa questo frammento sostitutivo per ripristinare le ultime 4 righe finali, inserendolo subito sotto la riga della larghezza massima della fascia (`Maximum Web Width`):*“`html| Technical Specification Parameter | Operational Performance Limits (MK Series) |
|---|---|
| Sealing and Forming Logic | Intermittent flat plate forming / Customizable flat plate or rotary roller sealing |
| Primary Material Compatibility | PVC, PVDC, Triplex, Aclar, ALU-ALU laminates, and aluminum lidding foils |
| Mechanical Stroke Capacity | Up to 60 – 70 strokes per minute (configuration and material dependent) |
| Maximum Web Width (L) | Up to 210 mm |
| Maximum Base Web Forming Pitch | Up to 156 mm |
| Maximum Base Web Forming Pitch | Up to 156 mm |
| Maximum Forming Depth Bounds | Up to 12 mm standard (Deep-draw variations available up to 28 mm) |
| Chassis Frame Design Philosophy | Full GMP-compliant balcony cantilever framework with interlocked safety guards |
